Orbit — Security-First Server Management Platform

Preview

See it in action

A full-featured server management dashboard, live in your browser.

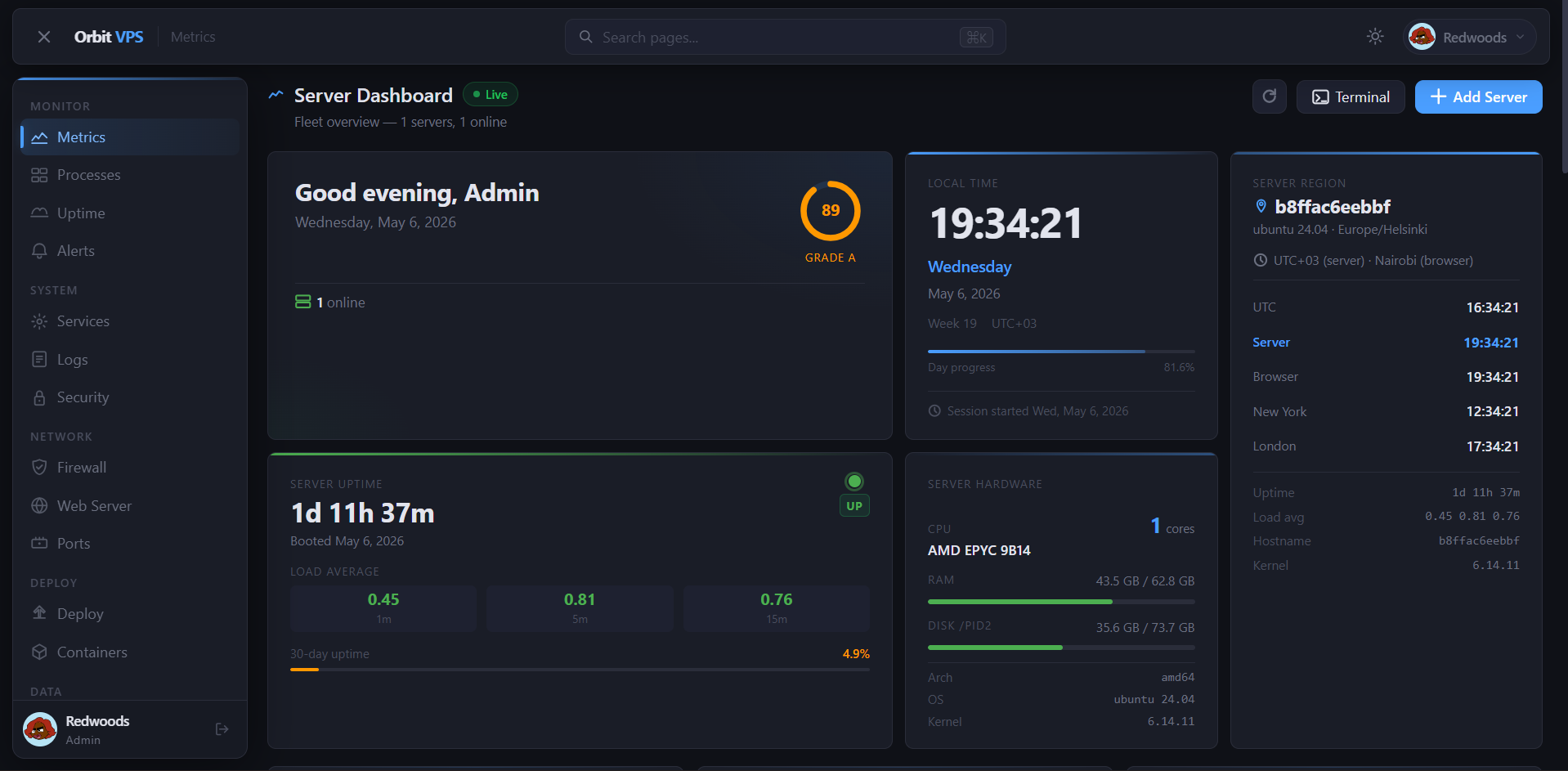

https://orbit.example.com/metrics

Orbit VPS Dashboard — server health overview

Server Dashboard — live server health, uptime, grade score, and timezone overview

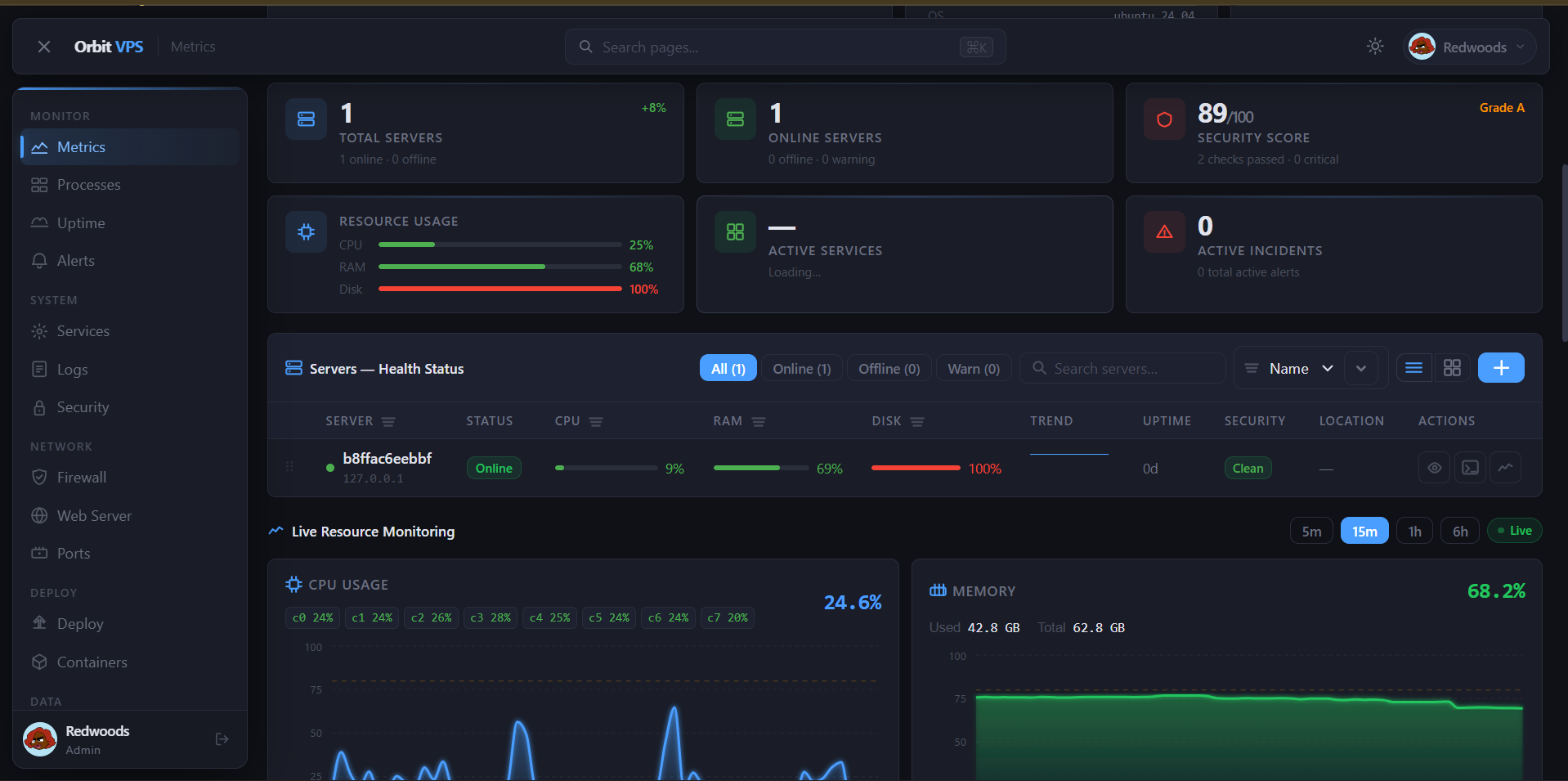

https://orbit.example.com/metrics

Orbit VPS — fleet overview and resource monitoring

Fleet Overview — multi-server health status with live CPU, RAM, and disk charts

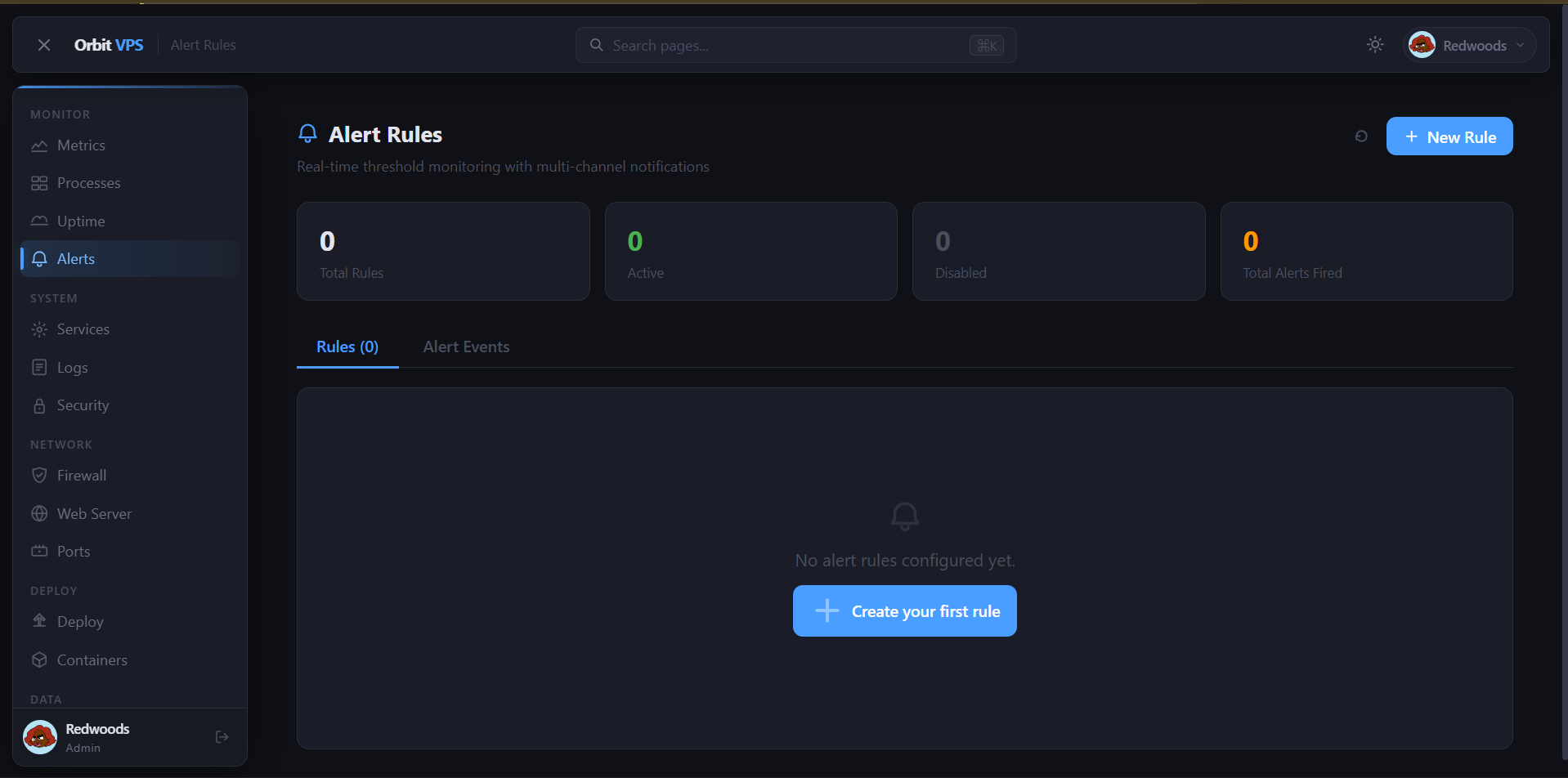

https://orbit.example.com/alerts

Alert Rules — real-time threshold monitoring with multi-channel notifications

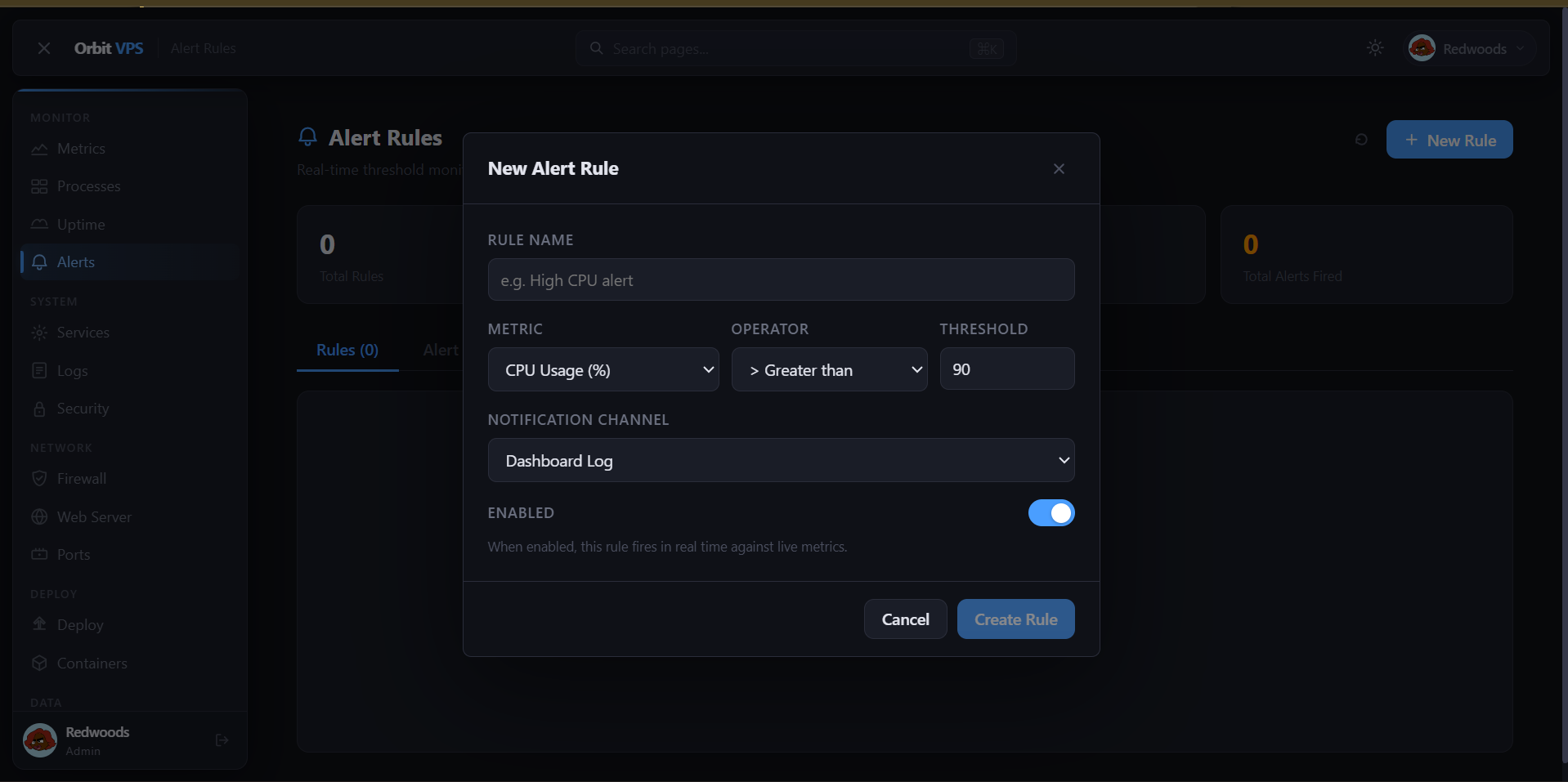

https://orbit.example.com/alerts

Create Alert Rule — configure metric, operator, threshold, and notification channel

Features

Everything your server needs

All modules ship in one binary. Enable or disable each independently via orbit.toml.

Real-time Metrics

CPU, memory, disk, and network graphs streamed live over WebSocket. Per-process stats via /proc.

Security Suite

Integrated Wazuh, Suricata, CrowdSec, and Fail2ban management. Audit logs and RBAC built in.

Firewall Control

Visual nftables/iptables management. Port-level rules with one-click apply and rollback.

GitOps Deployments

Push-to-deploy pipelines from any Git provider. Webhook triggers, build logs, and rollbacks.

Container Management

Full Docker lifecycle — pull, run, inspect, shell, logs — all from the browser.

Web Server Manager

Nginx/Apache vhost management, SSL certificates via Let's Encrypt, and live config editing.

Uptime Monitoring

HTTP and TCP monitors with incident timelines, status pages, and multi-channel alerting.

MCP Server

Model Context Protocol support — let AI assistants like Claude manage your server securely.

Multi-Server Fleet

Manage a fleet of remote servers over SSH from a single Orbit instance.

File Explorer

SFTP-backed file browser with upload, download, edit, and permission management.

Alert Rules

Real-time threshold monitoring across any metric. Fires to email, Slack, webhook, and more.

GitHub Actions

Trigger and monitor GitHub Actions workflows directly from the Orbit dashboard.

Profile & 2FA Management

Full user profile page — change username, password, avatar color, bio, and manage TOTP 2FA with backup codes from one screen.

Database Explorer

Connect MySQL, PostgreSQL, and SQLite databases. Browse tables, run queries, and monitor connection health.

Port Scanner

Real-time view of all open ports with process binding, protocol, and firewall rule correlation.

Profile & Security

Enterprise-grade account security

Every user account has a comprehensive self-service security center. Manage your identity, 2FA, and sessions without admin intervention.

TOTP Two-Factor Auth

Enable TOTP 2FA with any authenticator app (Google Authenticator, Authy, 1Password). QR code setup, manual key entry, and 10 single-use backup codes included.

Security Score

Real-time security score (0–100) based on 2FA status, backup code count, profile completeness. Actionable checklist of what to fix next.

Activity & Session Log

Full audit trail of every login, password change, and 2FA event. Active session list with one-click revocation from any device.

Profile Customization

Display name, bio, avatar color picker, and email. Inline username and password change with strength meter. All fields update in real-time without page reload.

Profile Feature	Orbit	Netdata	Grafana	Portainer
TOTP 2FA	✓	—	✓	✓
Backup codes	✓	—	✓	—
Session management	✓	—	✓	—
Account activity log	✓	—	—	—
Security score	✓	—	—	—

Tech Stack

Built for reliability

Zero runtime dependencies. One binary. Ships with a built-in React SPA and SQLite database.

Go 1.22

Backend

Standard library HTTP, net/http ServeMux, goroutine-per-request concurrency, zero framework overhead.

React 18

Frontend

Vite 5, TypeScript, TanStack Query v5, Recharts, Zustand, React Router v6. CSS Modules.

SQLite

Storage

mattn/go-sqlite3 for relational data. BoltDB for ephemeral metrics ring buffers. No external DB required.

WebSocket

Real-time

Native WebSocket streams for metrics, logs, and terminal. No polling. Sub-100ms latency on LAN.

JWT + TOTP

Auth

bcrypt password hashing, JWT session tokens, TOTP 2FA (RFC 6238), backup codes, RBAC roles.

MCP

AI Integration

Model Context Protocol server over Unix socket or TCP. Tools for metrics, services, firewall, and deployment.

Installation

Three ways to install

All methods default to port 5000. Every port must be in range 5000–6000.

Method 1 — One-liner recommended

# Installs binary, creates system user, writes config, enables systemd service
curl -fsSL https://raw.githubusercontent.com/KenyanRedwoods01/Orbit/main/scripts/install.sh | sudo bash

# With custom options
sudo bash install.sh --port 5100 --version v1.2.0

Method 2 — Clone and install

git clone https://github.com/KenyanRedwoods01/Orbit.git
cd Orbit
sudo bash scripts/install.sh

Method 3 — Docker (builds from source)

# Clone and build — Docker image is built locally from source
git clone https://github.com/KenyanRedwoods01/Orbit.git
cd Orbit
cp .env.example .env  # set ORBIT_SECRET_KEY
docker compose up -d  # builds image then starts on port 5000

# Or run a manually built image
docker build -t orbit .
docker run -d --name orbit \
  --cap-add NET_ADMIN --cap-add SYS_PTRACE \
  -p 5000:5000 -v orbit-data:/var/lib/orbit \
  orbit

      Installer options
      bash


Usage: install.sh [OPTIONS]

  --version, -v  VERSION    Release tag to install  (default: latest)
  --port, -p     PORT       Main panel port [5000-6000]  (default: 5000)
  --mcp-port     PORT       MCP TCP port    [5000-6000]  (default: 5001)
  --metrics-port PORT       Metrics port    [5000-6000]  (default: 5002)
  --no-start                Install without starting the service
  --uninstall               Remove Orbit from this system
  --help, -h                Show this help message

Port Reference

Port range: 5000–6000

All Orbit services are confined to ports 5000–6000. The installer validates every assignment before proceeding.

Port	Service	Protocol	Config key	Status
5000	Main panel (HTTPS)	TCP / WSS	`listen_addr`	Default
5001	MCP TCP listener	TCP	`[mcp] tcp_addr`	Optional
5002	Prometheus metrics	HTTP	`[metrics] addr`	Optional
5000–6000	Custom user services	Any	—	Reserved range

CI / CD

GitHub Actions workflows

Orbit ships four production-ready workflows for testing, releasing, Docker publishing, and this documentation site.

CI .github/workflows/ci.yml

Runs on every push and PR. Runs golangci-lint, Go tests with race detection, frontend build, and uploads a smoke-test binary artifact.

Release .github/workflows/release.yml

Triggered by a version tag (v*.*.*). Runs GoReleaser to build Linux binaries (amd64, arm64, armv7), creates .deb/.rpm packages, and publishes a multi-arch Docker image to GHCR.

GitHub Pages .github/workflows/pages.yml

Deploys the docs/ directory to GitHub Pages on every push to main. This is the site you're reading right now.

Security Scan .github/workflows/security.yml

Weekly and on every main push: runs govulncheck for Go CVEs and CodeQL analysis for both Go and JavaScript source.

Create a release

# Tag a release — triggers the release workflow automatically
git tag v0.1.0
git push origin v0.1.0

# GoReleaser builds:
#  orbit_linux_amd64.tar.gz
#  orbit_linux_arm64.tar.gz
#  orbit_linux_armv7.tar.gz
#  orbit_0.1.0_amd64.deb
#  orbit_0.1.0_x86_64.rpm
#  ghcr.io/kenyanredwoods01/orbit:v0.1.0
#  checksums.txt

Configuration

orbit.toml reference

Orbit reads /etc/orbit/orbit.toml by default. Pass a different path with --config.

/etc/orbit/orbit.toml

# Main listen address — port must be in range 5000-6000
listen_addr = "0.0.0.0:5000"

data_dir   = "/var/lib/orbit"
secret_key = "<auto-generated on first run>"

[modules]
metrics      = true
firewall     = true
deploy       = true
# ... all modules default to true

[mcp]
enabled     = false
socket_path = "/run/orbit/mcp.sock"
# tcp_addr  = "127.0.0.1:5001"
